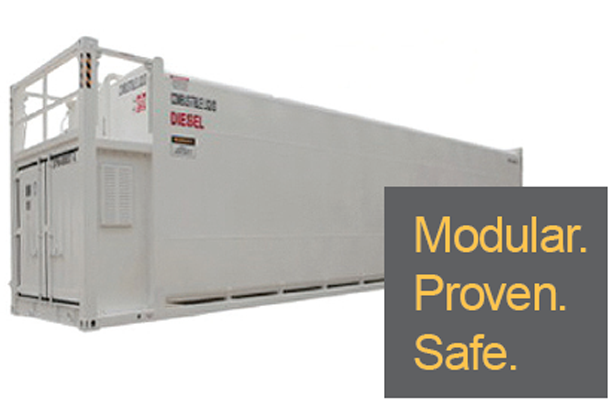

HOST ISO Classic Self Bunded Fuel Storage Tanks

DSTR-Liquip Wagga HOST ISO Classic SBTs

Years of experience in providing pumping and fuel management systems in depots and on Road Tankers has enabled us to design and supply quality, cost-effective fuel storage solutions, delivering safer and more efficient bulk liquid petrol, diesel, lubricant and chemical dispensing and storage solutions.

Today, all HOST ISO Classic Self Bunded Tank series (based on the ISO Container footprint) are designed to give you more value for money relating to fuel storage and dispensing. Able to store and dispenses larger volumes of petrochemicals their proven design, offers the lowest dollar per litre of storage for any Self Bunded Storage Tank available on the market.

Features include:
► Built to UL142, AS1940, AS1692, AS1657
► Durable, modular and robust design
► Has a more usable fuel volume
► Diesel, AdBlue, Diesel /AdBlue, ULP, Aviation, Oil & other petrochemicals storage approved
► Pumping solutions: 40 – 800 L/pm
► Fuel Management Packages

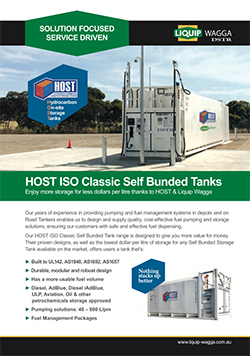

DOWNLOAD OUR HOST ISO CLASSIC SELF BUNDED TANK BROCHURE

HOST ISO Classic SBTs can safely store and dispense the following hydrocarbons (See table below for more information), making them highly valuable tank solution.








(Aviation SBTs based on container style with modifications).



Introducing the
perfect match.

The HOST ISO Classic Self Bunded Tank fitted with a custom pumping and dispensing solution designed and fitted by DSTR-Liquip Wagga



HOST ISO Classic Self Bunded Fuel Storage Tanks Range

The HOST ISO Classic range of Self Bunded Storage tanks is the result of listening to our customers and investing a great deal of engineering resources to design robust and high quality tank packages that provide more economical solutions for fuel storage.

► Single tanks to multi-million litre tank farms
ISO container design – 10’, 20’, 40’ and 48’ for ease of transportation
Designed to hold and dispense diesel, ULP, oils, aviation fuel, AdBlue (DEF) and many other petrochemicals.
Ideally suited for use in industries such as: fuel distribution, mining, aviation, power generation, oil and gas, military, transport and construction.

The range builds upon acquired knowledge and experiences and include key features that deliver you huge benefits, such as:
► Clean rounded lines on the inner tank eliminate stress points and areas for contamination to collect
Floor drains to a low point at the front of the tank for water removal
All tanks are intermodal. Standard containers can be transported by standard trucks or trains and moved by shipping container handling equipment, without cranes.

Ultimate Safety

Certified and tested to the highest global standards for bulk fuel storage, UL142, these tanks exceed all relevant Australian Standards for storage of flammable and combustible liquids. When empty, the tank is also an approved, truly intermodal container as classified by CSC to IMO standards.


HOST ISO Classic range of Self Bunded Storage Tanks

Duel fuel self bunded tank set-up

Standard Storage Tank Features

> All tanks are built to UL approval (PLUS AS1940, AS1692, AS1657. A heavier duty design and structure than the Australian Standard).

> All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.

> Tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.

> Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.

> All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.

> Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.

> The fill line has a standard stainless steel 80 mm Isolation valve and Check valve fitted.

> All tanks come with an Anodised Dipstick.

> The pressure or suction pipe is fitted with an 80 mm Isolation valve.

> The tanks roof is designed to cascade water off its surface, reducing corrosion.


Interested in learning about the benefits and key advantages of on-site bulk liquid storage? Then read our article, 'Seven ways on-site bulk liquid storage saves time and money'

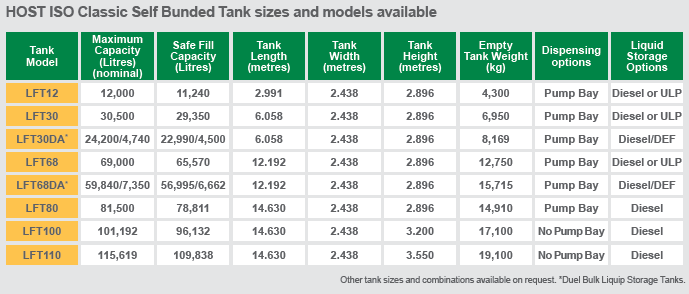

Our standard Self Bunded Bulk Liquid Storage Tank packages


What can be included in you tank and the sizes available

Tank Sizes & Standards

Sizes range  from 12,000 to 115,000 litres, and all tanks are manufactured to UL142 (which exceeds AS1940, AS1692 and AS1657).

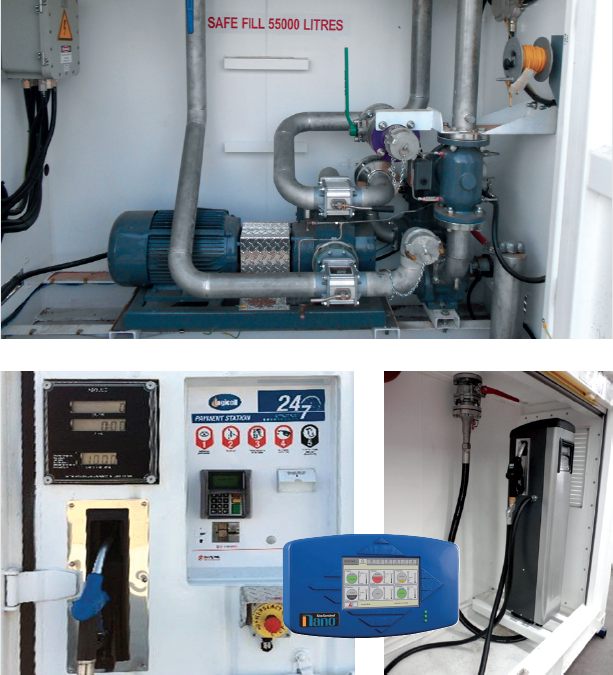

Fitting options

PUMPS
- Light Vehicle – 80 L/pm
- Heavy Vehicle or high flow – 160 L/pm
- Mining Equipment – 800 L/pm
- AdBlue Solution Pump – On tank and Off Tank
- Ebsray Unloading Pump – up to 1000 L/pm

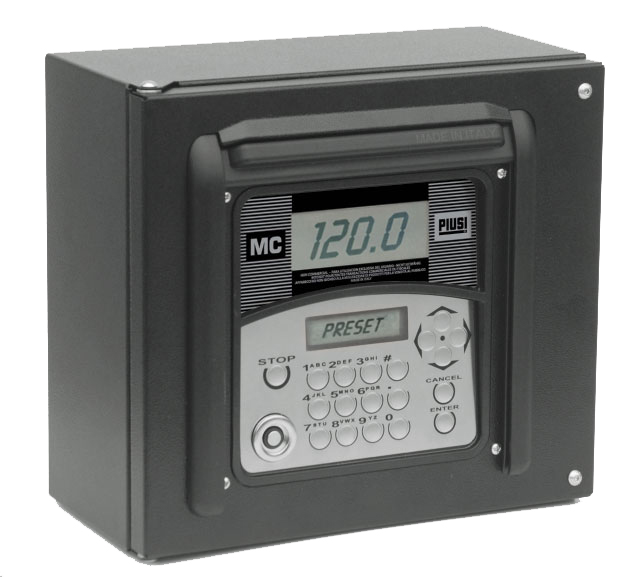

FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)

TANK GAUGES
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms

METERS
- Electronic or Mechanical Registers
- TCS meters or other

BULK DISPENSING EQUIPMENT
- Liquip Loading Arms – up to 1800 L/pm)
- Liquip Control Consoles and Metering
- Liquip Over Fill Control Systems
- Liquip Dead Man Switch

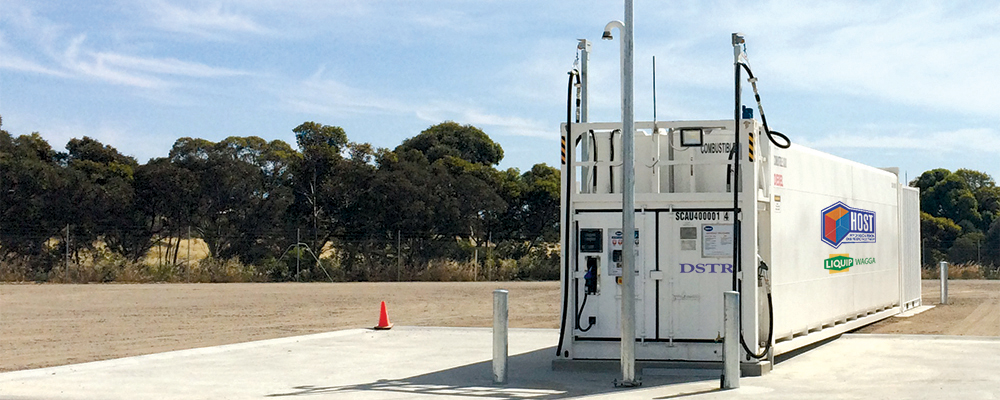

HOST Self bunded Tank at depot stop

Here's one of our Classic solutions in action

Add a HOST ISO Classic Duel Fuel Storage Tank (AdBlue and Diesel split tank) at your place of business to maximise the savings of onsite fuel storage and dispensing, just like this transport business did.


Did you know?
When you buy a Self Bunded Storage Tank from DSTR-Liquip Wagga, you are not just buying a tank, you’re buying a complete bulk liquid storage solution. Not to mention that we offer a complete turnkey solution as part of the purchase.

This includes:
► Selection and advice on the best suited tank solution
► Custom tailored pump dispensing and monitoring system design with multiple options to choose from
► Fit-out of pump dispensing equipment and systems onto the tank
► Delivery, installation and set-up of the tank on-site, along with commissioning
► Option of on-going servicing and maintenance of tank on-site.

For more information about our range of HOST Self Bunded Tank solutions please contact us today.
