API Parking Adaptors

The PA800 Series of parking adaptors for API couplers ensures bottom loading arms are correctly stowed and secured when not in use.

Parking adaptors can also be supplied to be used in conjunction with a proximity sensor (supplied separately). The proximity sensor once actuated can enable system interlocks.

Suitable for:

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Technical Information

Materials
Nose cone - Aluminium
Spring - Stainless Steel
Slider - Acetal
Stand - Painted Steel

Adjustment
PA801: None
PA811: Where Proximity is used, periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone.

Mounting
PA801 & PA811 bolt onto bracket supplied by customer.
PAx80x & PAx81x are free standing (bolt to concrete or skid floor).

Weight
PA801 - 0.9kg.
For other weights contact Liquip.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart

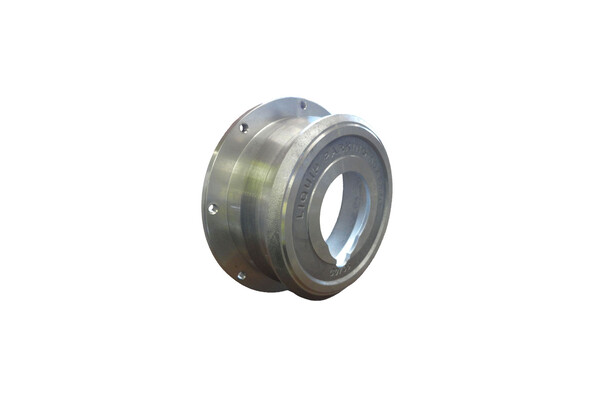

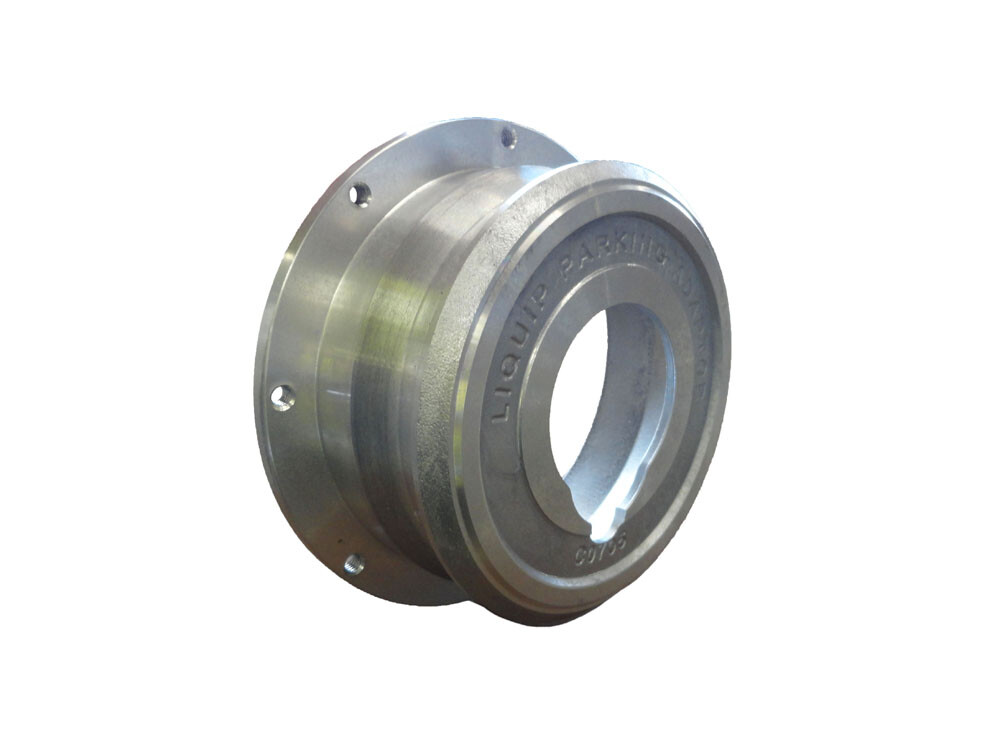

	PA801	API Parking Adaptor.

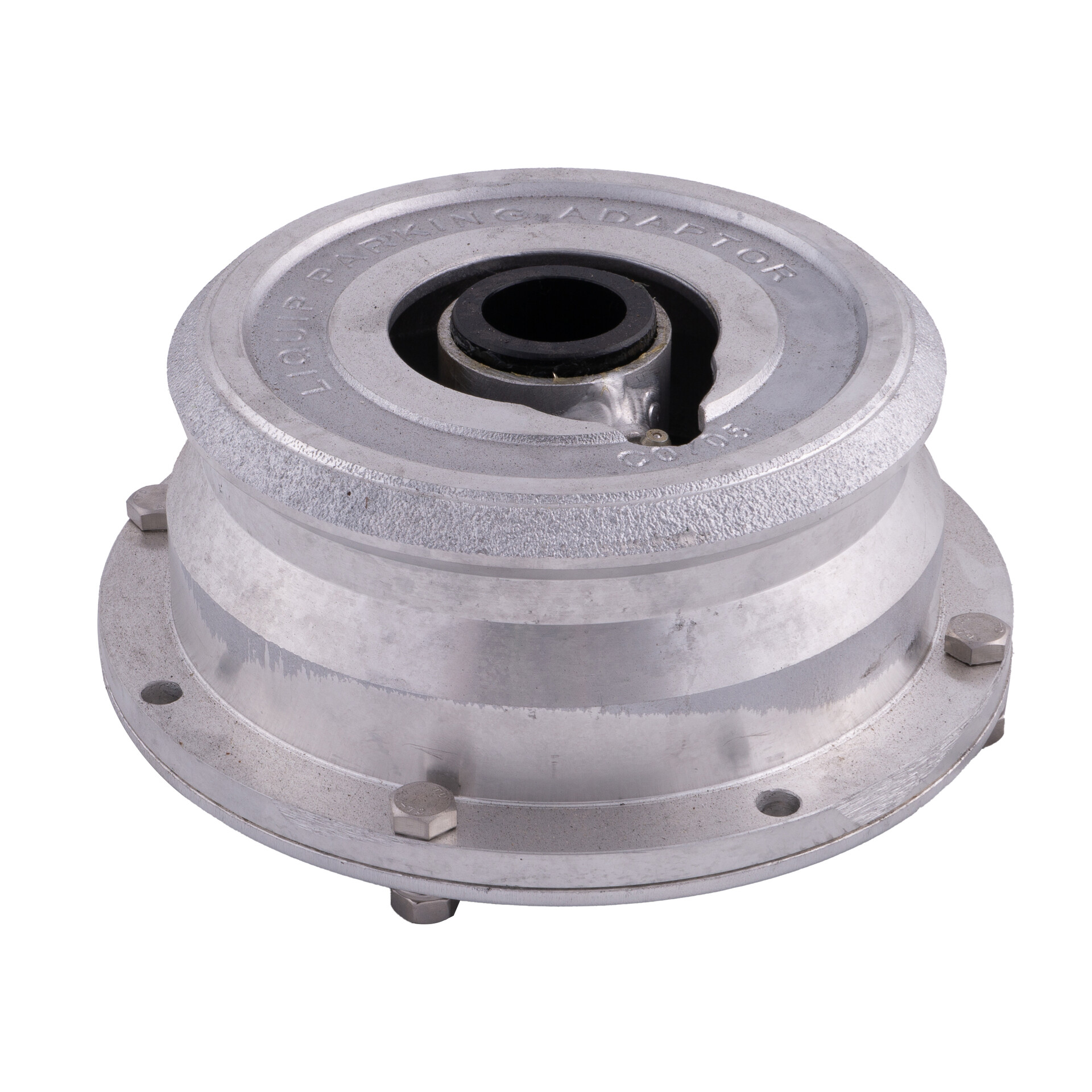

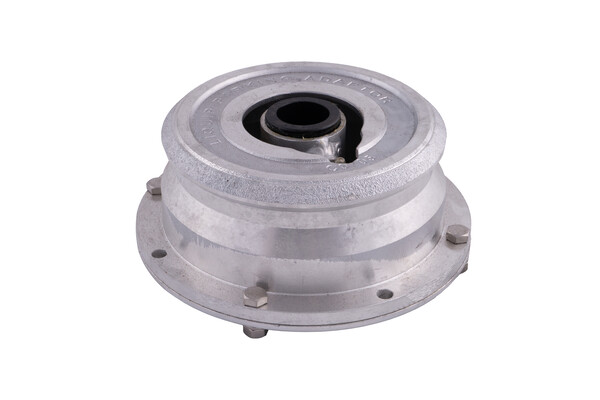

	PA811	API Parking Adaptor with Proximity Sensor Holder.

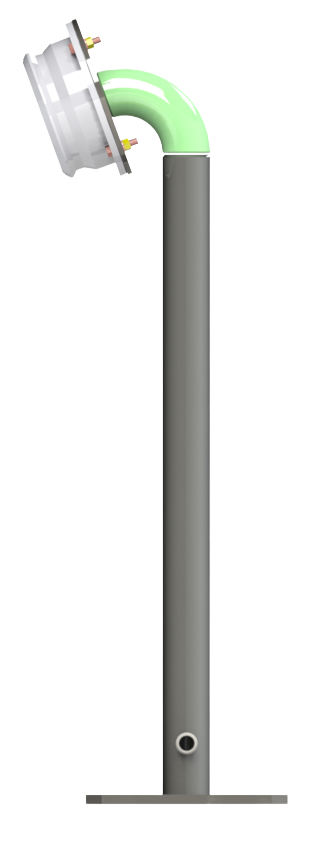

	PAA801	PA801 with Stand, Angled.
	PAA811	PA811 with Stand, Angled.

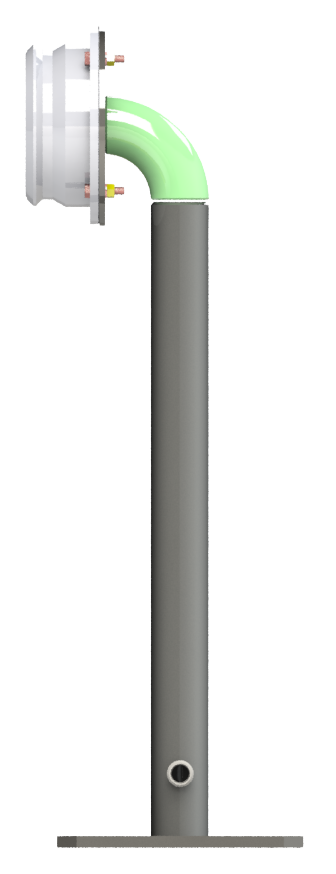

	PAS801	PA801 with Stand, Straight.
	PAS811	PA811 with Stand, Straight.
